Product Overview

This product consists of an eyepiece, an insertion part, and a medical light source device connection part, and image transmission is performed by a rod lens, and light transmission is performed by glass fiber.
The light provided from the medical light source device (separate item) illuminates the affected area (inside the spine) by a light guide made of optical fiber (glass fiber), and the image obtained by illuminating the affected area enters the rod lens of the endoscope and can be viewed with the eye through the eyepiece or with a medical image output device (separate item - camera system, TV monitor device, and various endoscope shooting devices).
The device (separate item) required for spinal surgery can be inserted through the working channel tube of the endoscope to perform treatment.

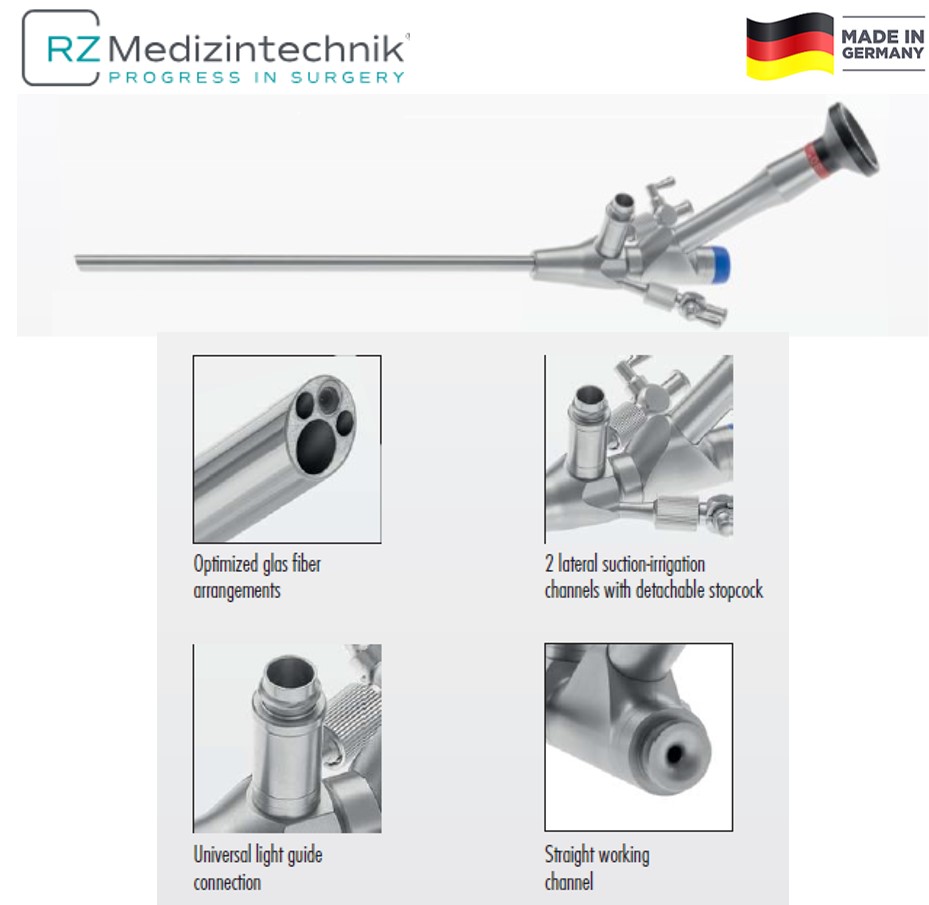

Feature

1) Eyepiece for C-mount connection
2) 3-step light post adapters to connect the most common light cables directly to the
endoscope
3) Sapphire glasses ensure highest stability against damages on the lens system
4) Optimized glass fibre arrangements ensure an uniform image brightness of highest
quality
5) High definition pictures with increased data-resolution through newest CAD-
designed rod-lens systems
6) Fully Autoclavable at 134℃ and 2.3bar
