Product Overview
Surgical bone cutting, shaving, polishing, grinding, drilling.
Feature
① Provide the optimized performance by BLDC motor (0~40,000rpm) and Angle
handpiece of several kinds.
② Program memory function - 9 programmable memories for setting Gear ratio,
Speed, Torque, Rotating direction, Irrigation pump and Optic.
③ Automatic overload protection function
④ Realtime RPM view system
⑤ Motor Auto-calibration function
⑥ Beep sound function - DRILL, SHAVER mode
⑦ Ergonomic foot controller
⑧ Setting with SETUP mode
Indication
- Each orthopedic, neurosurgical area
Performance
*Maximum speed
Gear ratio | 1:1 | 1:3 | 1:5 | 10:1 | 20:1 | 32:0 |
RPM | 40,000rpm | 120,000rpm | 200,000rpm | 4,000rpm | 2,000rpm | 1,250rpm |
- The free-running speed of the handpieces shall be in accordance with the
manufacturer’s instructions at a tolerance of ±10 % as specified. (Refer to ISO 14457)
* Torque
Gear ratio | 1:1 | 1:3 | 1:5 | 10:1 | 20:1 | 32:0 |
RPM | 1~6N-cm | 1~2N-cm | 1N-cm | 5~30N-cm | 5~80N-cm | 5~80N-cm |
* Gear ratio: 1:1, 1:3, 1:5, 10:1, 20:1, 32:1
* Maximum speed: 12,500 cycle/min
* Torque: 10 N·cm
* Gear ratio: 3:1
< SHAVER Mode >
*Maximum speed: 6,000 rpm (Forward, Reverse motion)
*Frequency (F/R repetition motion):
RPM | 300~1,000rpm | 1,100~1,800rpm | 1,900~2,600rpm | 2,700~3,400rpm | 3,500~4,200rpm | 4,300~5,00rpm |
Frequency | 0.5 Hz | 1.0 Hz | 1.5 Hz | 2.0 Hz | 2.5 Hz | 3.0 Hz |

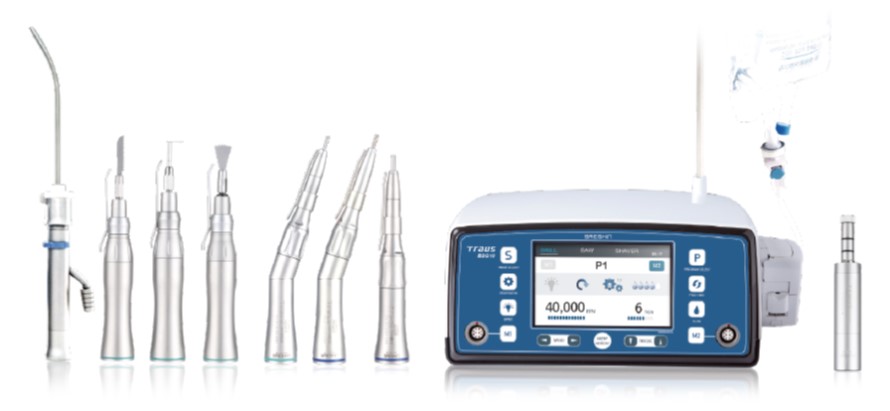

Components
No | Component name | No | Component name |
1 | Control box | 12 | Wrench |
2 | DRILL handpiece (1:1 straight type) (Option) | 13 | Motor cap for autoclave |
3 | DRILL handpiece (1:1 contra type) (Option) | 14 | Motor stand |
4 | DRILL handpiece (10:1 contra type) (Option) | 15 | DRILL external nozzle (Option) |
5 | SAW handpiece (Reciprocating type) (Option) | 16 | SAW external nozzle (Option) |
6 | SAW handpiece (Sagittal type) (Option) | 17 | Irrigation tube |
7 | SAW handpiece (Oscillating type) (Option) | 18 | Tube holder |
8 | SHAVER handpiece (Option) | 19 | Tube clamp |
9 | BLDC motor (Option) | 20 | Hanger |
10 | Foot controller | 21 | User manual |
11 | Power cord | 22 | Spray nozzle |
- Saline solution, Suction pump set, DRILL bur, SAW blade, SHAVER blade are not included in a set.
- Irrigation tube is disposable. Do not use it again.
